Vector 2: Geometries, Spatial Operations and Visualization Demo

UW Geospatial Data Analysis
CEE467/CEWA567
David Shean, Quinn Brencher

Background

https://autogis-site.readthedocs.io/en/latest/lessons/lesson-1/geometry-objects.html

Take a look at the first few sections of the shapely manual: https://shapely.readthedocs.io/en/stable/manual.html

Many of these are implemented in GeoPandas, and they will operate over GeoDataFrame and GeoSeries objects: https://geopandas.org/en/stable/docs/reference.html

These are common functions, and good to have in your toolkit for additional spatial analysis If you’ve taken a GIS class, you’ve definitely encountered these, probably through some kind of vector toolkit

Interactive Discussion

GeoDataFrame vs. GeoSeries

• https://geopandas.org/data_structures.html

• Indexing and selection - iloc, loc

• Pandas squeeze: https://pandas.pydata.org/pandas-docs/stable/reference/api/pandas.DataFrame.squeeze.html

Geometry objects

• POINT, LINE, POLYGON

• Polygon vs. MultiPolygon

GEOS geometry operations, as exposed by shapely

• GEOS https://libgeos.org/

• https://geopandas.org/geometric_manipulations.html

• Intersection

• Union

• Buffer

Spatial joins with GeoPandas

• https://gisgeography.com/spatial-join/

• https://pandas.pydata.org/pandas-docs/stable/user_guide/merging.html

Visualization: Chloropleth and Heatmap

• https://geopandas.org/mapping.html

Interactive plotting

• ipyleaflet, folium

• Basemap tiles with contextily

Interactive Demo

### Polygon creation
### Basic geometric operations on GeoDataFrame and Geometry objects

import os
import requests

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import geopandas as gpd
from shapely.geometry import Point, Polygon
import xyzservices.providers as xyz
#plt.rcParams['figure.figsize'] = [10, 8]

#%matplotlib widget

Read in the projected GLAS points

• Ideally, use the file with equal-area projection exported during Lab04

• Note, you can right-click on a file in the Jupyterlab file browser, and select “Copy Path”, then paste, but make sure you get the correct relative path to the current notebook (../)

• If you have issues with your file, you can recreate:

  • Read the original GLAS csv

  • Load into GeoDataFrame, define CRS ('EPSG:4326')

  • Reproject with following PROJ string: '+proj=aea +lat_1=37.00 +lat_2=47.00 +lat_0=42.00 +lon_0=-114.27'

#Recreating using original csv and proj string from Lab03
aea_proj_str = '+proj=aea +lat_1=37.00 +lat_2=47.00 +lat_0=42.00 +lon_0=-114.27'
csv_fn = '../02_NumPy_Pandas_Matplotlib/data/GLAH14_tllz_conus_lulcfilt_demfilt.csv'
glas_df = pd.read_csv(csv_fn)
glas_gdf = gpd.GeoDataFrame(glas_df, crs='EPSG:4326', geometry=gpd.points_from_xy(glas_df['lon'], glas_df['lat']))
glas_gdf_aea = glas_gdf.to_crs(aea_proj_str)

glas_gdf_aea.head()

	decyear	ordinal	lat	lon	glas_z	dem_z	dem_z_std	lulc	geometry
0	2003.139571	731266.943345	44.157897	-105.356562	1398.51	1400.52	0.33	31	POINT (709465.483 277418.898)
1	2003.139571	731266.943346	44.150175	-105.358116	1387.11	1384.64	0.43	31	POINT (709431.326 276549.914)
2	2003.139571	731266.943347	44.148632	-105.358427	1392.83	1383.49	0.28	31	POINT (709424.459 276376.27)
3	2003.139571	731266.943347	44.147087	-105.358738	1384.24	1382.85	0.84	31	POINT (709417.614 276202.405)
4	2003.139571	731266.943347	44.145542	-105.359048	1369.21	1380.24	1.73	31	POINT (709410.847 276028.547)

Create a variable to store the crs of your GeoDataFrame

• Quickly print this out to verify everything looks good

aea_crs = glas_gdf_aea.crs
aea_crs

<Projected CRS: +proj=aea +lat_1=37.00 +lat_2=47.00 +lat_0=42.00 + ...>
Name: unknown
Axis Info [cartesian]:
- E[east]: Easting (metre)
- N[north]: Northing (metre)
Area of Use:
- undefined
Coordinate Operation:
- name: unknown
- method: Albers Equal Area
Datum: World Geodetic System 1984
- Ellipsoid: WGS 84
- Prime Meridian: Greenwich

Read in the state polygons

states_url = 'http://eric.clst.org/assets/wiki/uploads/Stuff/gz_2010_us_040_00_5m.json'
#states_url = 'http://eric.clst.org/assets/wiki/uploads/Stuff/gz_2010_us_040_00_500k.json'
states_gdf = gpd.read_file(states_url)

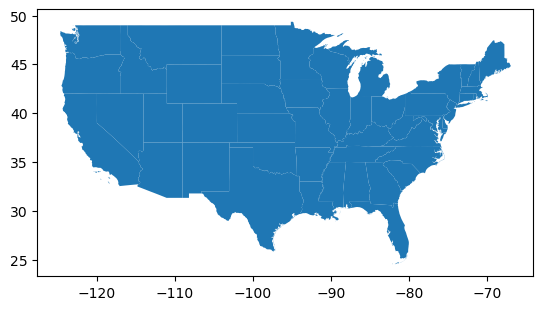

Limit to Lower48

idx = states_gdf['NAME'].isin(['Alaska','Puerto Rico','Hawaii'])
states_gdf = states_gdf[~idx]

states_gdf.plot();

Reproject the states to match the crs of your points

states_gdf_aea = states_gdf.to_crs(aea_crs)

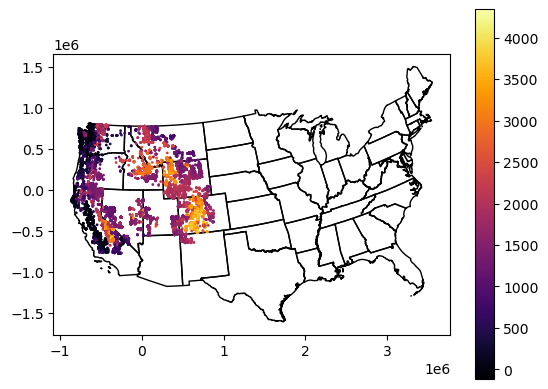

Create a quick plot to verify everything looks good

• Can re-use plotting code near the end of Lab03

f, ax = plt.subplots()
states_gdf_aea.plot(ax=ax, facecolor='none', edgecolor='k')
glas_gdf_aea.plot(ax=ax, column='glas_z', cmap='inferno', markersize=1, legend=True);

Extract the MultiPolygon geometry object for Washington from your reprojected states GeoDataFrame

• Use the state ‘NAME’ value to isolate the approprate GeoDataFrame record for Washington

• Assign the geometry attribute for this record to a new variable called wa_geom

  • This is a little tricky

  • After a boolean filter to get the WA record, you will need to use something like iloc[0] to extract a GeoSeries, and then isolate the geometry attribute

    • wa_geom = wa_gdf.iloc[0].geometry

  • Use the python type() function to verify that your output type is shapely.geometry.multipolygon.MultiPolygon

# This is a new GeoDataFrame with one entry
wa_gdf = states_gdf_aea[states_gdf_aea['NAME'] == 'Washington']

wa_gdf

	GEO_ID	STATE	NAME	LSAD	CENSUSAREA	geometry
47	0400000US53	53	Washington		66455.521	MULTIPOLYGON (((-612752.94 729560.713, -613021...

type(wa_gdf)

geopandas.geodataframe.GeoDataFrame

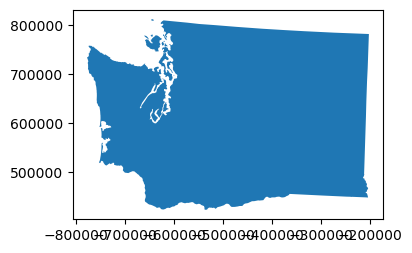

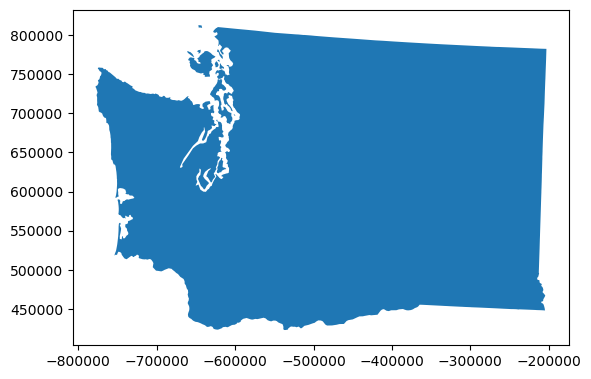

wa_gdf.plot();

Review loc, iloc, squeeze

wa_gdf.loc[47]

GEO_ID                                              0400000US53
STATE                                                        53
NAME                                                 Washington
LSAD
CENSUSAREA                                            66455.521
geometry      MULTIPOLYGON (((-612752.9400995675 729560.7125...
Name: 47, dtype: object

wa_gdf.iloc[0]

GEO_ID                                              0400000US53
STATE                                                        53
NAME                                                 Washington
LSAD
CENSUSAREA                                            66455.521
geometry      MULTIPOLYGON (((-612752.9400995675 729560.7125...
Name: 47, dtype: object

wa_gdf.squeeze()

GEO_ID                                              0400000US53
STATE                                                        53
NAME                                                 Washington
LSAD
CENSUSAREA                                            66455.521
geometry      MULTIPOLYGON (((-612752.9400995675 729560.7125...
Name: 47, dtype: object

type(wa_gdf.squeeze())

pandas.core.series.Series

# This is the Geometry object for that one entry
wa_geom = wa_gdf.squeeze().geometry

type(wa_geom)

shapely.geometry.multipolygon.MultiPolygon

Inspect the Washington geometry object

What happens when you pass the geometry object to print()?

#print(wa_geom)

What happens when you execute a notebook cell containing only the geometry object variable name? Oooh.

• Thanks Jupyter/iPython!

wa_geom

What is the geometry type?

wa_geom.geom_type

'MultiPolygon'

Find the geometric center of WA state

• See the centroid attribute

• You may have to print() this to see the coordinates

#GeoDataFrame
#c = wa_gdf.centroid.iloc[0]
#MultiPolygon Geometry
c = wa_geom.centroid

c

print(c)

POINT (-467157.4732308432 616343.1305797547)

How many individual polygons are contained in the WA geometry?

• Hint: how would you get the number of elements in a standard Python tuple or list?

• If more than one, why?

list(wa_geom.geoms)

[<POLYGON ((-612752.94 729560.713, -613021.334 729273.422, -613662.604 728994...>,
 <POLYGON ((-617655.037 643357.018, -616062.698 642357.024, -616769.029 64134...>,
 <POLYGON ((-620939.954 780369.148, -619290.66 776796.516, -618975.967 775700...>,
 <POLYGON ((-642885.526 812063.484, -642146.899 809220.775, -642669.654 80890...>,
 <POLYGON ((-630090.827 766174.021, -630496.598 765572.995, -630334.207 76438...>,
 <POLYGON ((-658412.977 778304.396, -657537.277 778241.805, -656565.652 77757...>,
 <POLYGON ((-645363.093 780668.028, -644900.327 780993.484, -644161.267 78102...>,
 <POLYGON ((-619129.404 763618.245, -618629.246 763556.206, -617825.142 76168...>,
 <POLYGON ((-623703.558 766331.016, -622375.001 764843.757, -622224.419 76416...>,
 <POLYGON ((-622447.241 767581.22, -622337.148 767789.253, -620504.663 768373...>,
 <POLYGON ((-601852.039 698497.732, -601366.974 698721.75, -600888.341 698525...>,
 <POLYGON ((-615423.687 621888.803, -611189.472 623199.555, -609082.149 62361...>]

len(wa_geom.geoms)

12

wa_geom.area/1E6

175822.70667113317

Cracking open the geometry collection

Compute the area of each individual polygon

• Remember, this MultiPolygon object is iterable, so maybe list comprehension here?

• Store the output areas in a new list or array

wa_geom.geoms[0]

wa_geom.geoms[0].area

463990359.19588774

poly_area = [x.area for x in wa_geom.geoms]
poly_area

[463990359.19588774,
 107590054.65454032,
 24272338.175023668,
 12379518.750684448,
 623492527.1550797,
 21717224.08404236,
 12991256.233926358,
 21931206.771757536,
 24380918.94184941,
 4004131.839015948,
 1766748.2423283518,
 174504190387.08905]

Isolate and render the polygons that have min and max area

• Remember the NumPy argmax function? Maybe useful here…

maxidx = np.argmax(poly_area)
minidx = np.argmin(poly_area)

maxidx

np.int64(11)

print(wa_geom.geoms[maxidx].area)
wa_geom.geoms[maxidx]

174504190387.08905

print(wa_geom.geoms[minidx].area)
wa_geom.geoms[minidx]

1766748.2423283518

How many vertices are in the largest polygon?

• Let’s start by looking at the exterior ring of the largest polygon geometry

  • This is actually a line, so if you ever need to convert a simple polygon geometry to a line geometry, now you know how to do it - use exterior!

  • You should see an outline of WA state

• Now let’s access the coordinates for this line geometry with coords[:]

  • This will return a list of (x,y) tuples for each vertex

• You already know how to determine the number of items in a list!

wa_geom.geoms[maxidx].exterior

type(wa_geom.geoms[maxidx].exterior)

shapely.geometry.polygon.LinearRing

wa_geom.geoms[maxidx].exterior.coords

<shapely.coords.CoordinateSequence at 0x7c6eed737490>

#wa_geom.geoms[maxidx].exterior.coords[:]

# Note -1 to remove repeated coord needed to close the polygon
len(wa_geom.geoms[maxidx].exterior.coords[:]) - 1

1365

How many vertices in the smallest polygon?

len(wa_geom.geoms[minidx].exterior.coords[:]) - 1

6

Take a look at the list of (x,y) coordinates in the smallest polygon

• What do you notice about the first and last coordinate?

wa_geom.geoms[minidx].exterior.coords[:]

[(-601852.0391967978, 698497.7315981847),
 (-601366.9738585693, 698721.7499047287),
 (-600888.3410211434, 698525.3867155112),
 (-599678.0363506506, 696809.5398449603),
 (-599926.7737744286, 696698.4274957966),
 (-601315.8650362622, 697486.3070502713),
 (-601852.0391967978, 698497.7315981847)]

This is a closed polygon! It starts and ends at the same point. So technically, you have one less vertex than the total number of points in the polygon.

Determine the perimeter of WA state in km

• This should be quick - just use an attribtue of the MultiPolygon geometry

wa_geom.length/1E3

3513.2810843205025

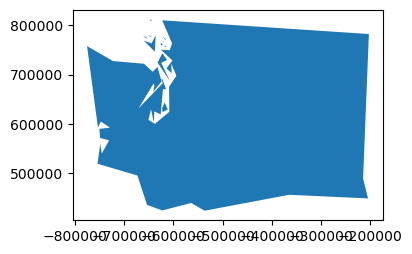

Explore the simplify() method for your MultiPolygon

• This can be very useful if you have complex geometry objects that require a lot of memory

  • Perhaps a line from a GPS track, or a polygon extracted from a raster with a vertex at each pixel

  • You can simplify, preserve almost all of the original information, and remove many (sometimes most) of the redundant/unnecessary vertices

• https://shapely.readthedocs.io/en/latest/manual.html#object.simplify

• Need to provide a tolerance in units of meters

  • Try 100, 1000, 10000, 100000

  • How does this affect the perimeter measurement?

def smart_simplify(geom, tol):
    newgeom = geom.simplify(tol)
    newvertcount = sum(len(x.exterior.coords[:]) for x in newgeom.geoms)
    gpd.GeoSeries(newgeom).plot(figsize=(4,3))
    print(tol, '%0.1f' % (newgeom.length/1E3), newvertcount)

print("Tolerance", "Perimieter", "Num vertices")
for i in (100,1000,10000,100000):
    smart_simplify(wa_geom, i)

Tolerance Perimieter Num vertices
100 3512.1 1432
1000 3414.6 421
10000 2985.8 99
100000 2383.0 57

Coastline Paradox

• https://en.wikipedia.org/wiki/Coastline_paradox

Extra Credit: What percentage of the total WA state perimeter is from islands?

wa_geom.geoms[maxidx].length / wa_geom.length

0.8513022231543143

(1.0 - (wa_geom.geoms[maxidx].length / wa_geom.length))*100

14.869777684568575

Unite the West Coast!

• Let’s create a single Multipolygon for West Coast states: Washington, Oregon and California

• Start by extracting those states to a new GeoDataFrame - can use the isin() function for Pandas, which is similar to built-in in operation in Python

idx = states_gdf_aea['NAME'].isin(['Washington','Oregon','California'])
westcoast_gdf = states_gdf_aea[idx]
westcoast_gdf

	GEO_ID	STATE	NAME	LSAD	CENSUSAREA	geometry
4	0400000US06	06	California		155779.220	MULTIPOLYGON (((-715337.404 -425936.004, -7153...
37	0400000US41	41	Oregon		95988.013	POLYGON ((-594594.782 433232.266, -593459.687 ...
47	0400000US53	53	Washington		66455.521	MULTIPOLYGON (((-612752.94 729560.713, -613021...

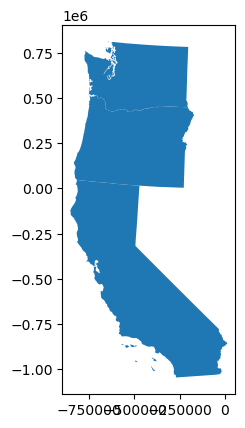

westcoast_gdf.plot();

Combine the states as a single MultiPolygon geometry

• See the unary_all() method

westcoast_geom = westcoast_gdf.union_all()
westcoast_geom

Note: If you have a column that classifies features in a GeoDataFrame (e.g., a column for region with a shared value of ‘West Coast’ for these polygons), you can also use dissolve(by='region') to create a new GeoDataFrame of merged polygons

Now buffer the combined geometry

• Use a 50 km buffer

westcoast_geom_buff = westcoast_geom.buffer(50000)
westcoast_geom_buff

type(westcoast_geom_buff)

shapely.geometry.polygon.Polygon

#Buffer distance can be negative
westcoast_geom_erode = westcoast_geom.buffer(-50000)
westcoast_geom_erode

Use a difference operation to isolate the buffered region around the individual polygons

• This is sometimes useful if you need to extract statistics from another dataset

westcoast_geom_buff.difference(westcoast_geom_erode)

westcoast_geom_buff.difference(westcoast_geom)

Somebody should put that on a sticker!

RGI glacier polygons

Let’s grab some glacier outline poygons from the Randolph Glacier Inventory (RGI) v7.0: https://www.glims.org/RGI/

#!unzip data/RGIv7_latest_02_WesternCanadaUS.zip

#Alternatively, just load zip file and decompress shp directly from url!
rgi_fn = 'data/RGIv7_latest_02_WesternCanadaUS.geojson'

Load RGI shapefile using Geopandas

• Very easy with read_file() meethod

rgi_gdf = gpd.read_file(rgi_fn)

rgi_gdf.shape

(20539, 14)

rgi_gdf.head()

	anlys_id	glac_id	anlys_time	area	width	length	min_elev	mean_elev	max_elev	glac_name	proc_desc	geog_area	surge_type	geometry
0	766495.0	G250699E42895N	2006-08-01	0.014	0.0	0.0	3488.0	0.0	3518.0	WY	Digitization from 1:24000 maps (24K) published...	Conterminous USA	0.0	POLYGON ((-109.30078 42.89637, -109.30072 42.8...
1	763516.0	G239017E48473N	2006-08-01	0.010	0.0	0.0	2190.0	0.0	2311.0	WA	Digitization from 1:24000 maps (24K) published...	Conterminous USA	0.0	POLYGON ((-120.98332 48.47304, -120.98284 48.4...
2	764414.0	G241324E37203N	2006-08-01	0.098	0.0	0.0	3722.0	0.0	4017.0	CA	Digitization from 1:24000 maps (24K) published...	Conterminous USA	0.0	POLYGON ((-118.677 37.20606, -118.67698 37.205...
3	763639.0	G239094E48483N	2006-08-01	0.020	0.0	0.0	2288.0	0.0	2551.0	WA	Digitization from 1:24000 maps (24K) published...	Conterminous USA	0.0	POLYGON ((-120.90719 48.48308, -120.90702 48.4...
4	764290.0	G241201E37347N	2006-08-01	0.010	0.0	0.0	3625.0	0.0	3722.0	CA	Digitization from 1:24000 maps (24K) published...	Conterminous USA	0.0	POLYGON ((-118.79962 37.34798, -118.79948 37.3...

That’s it!

#By default a new integer index is created.  Can use the RGI ID as our index
rgi_gdf = rgi_gdf.set_index('glac_id')

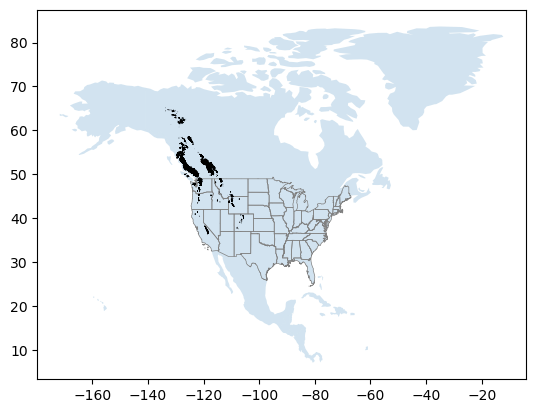

Create a quick plot

#%matplotlib widget

world = gpd.read_file("https://naciscdn.org/naturalearth/110m/cultural/ne_110m_admin_0_countries.zip")
ax = world[world['CONTINENT'] == 'North America'].plot(alpha=0.2)
states_gdf.plot(ax=ax, facecolor='none', edgecolor='0.5', linewidth=0.5)
rgi_gdf.plot(ax=ax, edgecolor='k', linewidth=0.5);

Clip RGI polygons to WA state

GeoPandas makes spatial selection easy.

We’ll have two options: 1) using a bounding box, and 2) using an arbitrary polygon.

1. Bounding box

wa_gdf

	GEO_ID	STATE	NAME	LSAD	CENSUSAREA	geometry
47	0400000US53	53	Washington		66455.521	MULTIPOLYGON (((-612752.94 729560.713, -613021...

xmin, ymin, xmax, ymax = wa_gdf.to_crs('EPSG:4326').total_bounds

print(xmin, ymin, xmax, ymax)

-124.733174 45.543541 -116.915989 49.002494000000006

Create new GeoDataFrame from output of simple spatial filter with GeoPandas cx function

• https://geopandas.org/indexing.html

rgi_gdf_wa = rgi_gdf.cx[xmin:xmax, ymin:ymax]

print("Number of RGI polygons before:",rgi_gdf.shape[0])
print("Number of RGI polygons after:", rgi_gdf_wa.shape[0])

Number of RGI polygons before: 20539
Number of RGI polygons after: 3298

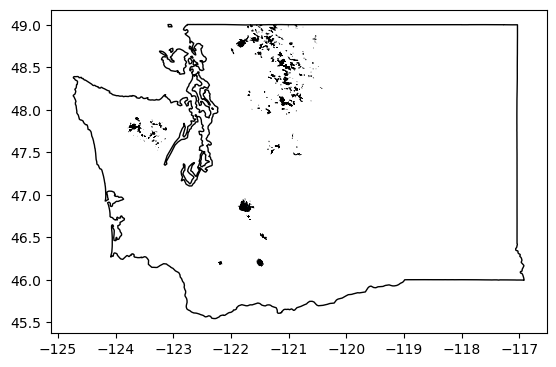

Quick plot to verify

ax = rgi_gdf_wa.plot(edgecolor='k', linewidth=0.5)
wa_gdf.to_crs('EPSG:4326').plot(ax=ax, facecolor='none')

<Axes: >

2. Clip points to arbitrary Polygon geometry

• Let’s determine convex hull of the complex WA state multipologon

• https://en.wikipedia.org/wiki/Convex_hull

wa_gdf_chull = wa_gdf.to_crs('EPSG:4326').convex_hull.squeeze()

#Check the type
type(wa_gdf_chull)

shapely.geometry.polygon.Polygon

Preview geometry

Note that geometry objects (points, lines, polygons, etc.) will render directly in the Jupyter notebook! Great for quick previews.

wa_gdf_chull

print(wa_gdf_chull)

POLYGON ((-122.294901 45.543541, -122.33150200000001 45.548241000000004, -122.43867400000002 45.56358500000004, -122.64390700000001 45.609739, -122.675008 45.618039000000024, -122.73810900000001 45.644137999999955, -124.080671 46.26723900000002, -124.08218700000002 46.26915900000001, -124.67242700000001 47.964414000000005, -124.733174 48.16339299999998, -124.73182800000001 48.38115699999996, -124.725839 48.386012000000065, -124.71694700000002 48.38977600000004, -123.090546 49.001976000000006, -123.03539300000001 49.00215400000004, -122.75802 49.00235700000007, -122.251063 49.002494000000006, -117.607323 49.000842999999996, -117.26819200000001 48.99992800000003, -117.032351 48.99918799999996, -116.921258 46.16479500000001, -116.915989 45.99541300000002, -121.145534 45.607885999999986, -121.167852 45.60609800000006, -122.26670100000001 45.54384099999998, -122.294901 45.543541))

Compute intersection between all RGI polygons and the convex hull

Use the GeoDataFrame intersects() function.
This will return a Boolean DataSeries, True if points intersect the polygon, False if they do not

rgi_gdf_idx = rgi_gdf.intersects(wa_gdf_chull)

rgi_gdf_idx

glac_id
G250699E42895N    False
G239017E48473N     True
G241324E37203N    False
G239094E48483N     True
G241201E37347N    False
                  ...
G238195E46902N     True
G238391E46856N     True
G238307E46833N     True
G238240E46829N     True
G238276E46894N     True
Length: 20539, dtype: bool

Extract records with True for the intersection

print("Number of RGI polygons before:",rgi_gdf.shape[0])
rgi_gdf_wa = rgi_gdf[rgi_gdf_idx]
print("Number of RGI polygons after:", rgi_gdf_wa.shape[0])

Number of RGI polygons before: 20539
Number of RGI polygons after: 3298

Quick plot to verify

Note latitude range

#rgi_gdf_wa.plot(edgecolor='k', linewidth=0.5);

rgi_gdf_wa_aea = rgi_gdf_wa.to_crs(aea_crs)

rgi_gdf_wa_aea.geometry.centroid.x

glac_id
G239017E48473N   -497237.454588
G239094E48483N   -491531.011545
G238461E46196N   -559772.039143
G238476E46179N   -558820.303912
G236347E47827N   -702158.824421
                      ...
G238195E46902N   -573319.398071
G238391E46856N   -558851.893050
G238307E46833N   -565475.511406
G238240E46829N   -570590.824149
G238276E46894N   -567218.412913
Length: 3298, dtype: float64

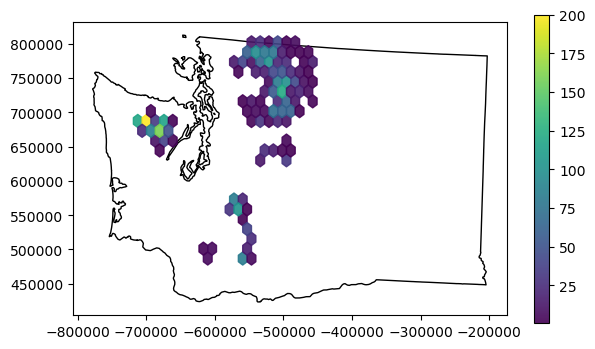

f, ax = plt.subplots(figsize=(7,4))
wa_gdf.plot(ax=ax, facecolor='none')
x = rgi_gdf_wa_aea.geometry.centroid.x
y = rgi_gdf_wa_aea.geometry.centroid.y
hb = ax.hexbin(x, y, gridsize=20, mincnt=1, vmax=200, alpha=0.9)
ax.set_aspect('equal')
plt.colorbar(hb, ax=ax);

Merge GLAS points and RGI polygons

Earlier we computed some statistics for the full CONUS GLAS sample and hex bins. Now let’s analyze the GLAS points that intersect each RGI glacier polygon.

One approach would be to loop through each glacier polygon, and do an intersection operation with all points. But this is inefficient, and doesn’t scale well. It is much more efficient to do a spatial join between the points and the polygons, then groupby and aggregate to compute the relevant statistics for all points that intersect each glacier polygon.

You may have learned how to perform a join or spatial join in a GIS course. So, do we need to open ArcMap or QGIS here? Do we need a full-fledged spatial database like PostGIS? No! GeoPandas has you covered.

• Start by reviewing the Spatial Join documentation here: http://geopandas.org/mergingdata.html

• Use the geopandas sjoin method: http://geopandas.org/reference/geopandas.sjoin.html

First, we need to make sure all inputs have the same projection

• Reproject the RGI polygons to match our point CRS (custom Albers Equal-area)

glas_gdf_aea.crs

<Projected CRS: +proj=aea +lat_1=37.00 +lat_2=47.00 +lat_0=42.00 + ...>
Name: unknown
Axis Info [cartesian]:
- E[east]: Easting (metre)
- N[north]: Northing (metre)
Area of Use:
- undefined
Coordinate Operation:
- name: unknown
- method: Albers Equal Area
Datum: World Geodetic System 1984
- Ellipsoid: WGS 84
- Prime Meridian: Greenwich

rgi_gdf_wa_aea.crs

<Projected CRS: +proj=aea +lat_1=37.00 +lat_2=47.00 +lat_0=42.00 + ...>
Name: unknown
Axis Info [cartesian]:
- E[east]: Easting (metre)
- N[north]: Northing (metre)
Area of Use:
- undefined
Coordinate Operation:
- name: unknown
- method: Albers Equal Area
Datum: World Geodetic System 1984
- Ellipsoid: WGS 84
- Prime Meridian: Greenwich

Optional: isolate relevant columns to simplify our output

glas_gdf_aea.columns

Index(['decyear', 'ordinal', 'lat', 'lon', 'glas_z', 'dem_z', 'dem_z_std',
       'lulc', 'geometry'],
      dtype='object')

rgi_gdf_wa_aea.columns

Index(['anlys_id', 'anlys_time', 'area', 'width', 'length', 'min_elev',
       'mean_elev', 'max_elev', 'glac_name', 'proc_desc', 'geog_area',
       'surge_type', 'geometry'],
      dtype='object')

glas_col = ['decyear', 'glas_z', 'geometry']
rgi_col = ['area', 'glac_name', 'geometry']

glas_gdf_aea_lite = glas_gdf_aea[glas_col]
rgi_gdf_wa_aea_lite = rgi_gdf_wa_aea[rgi_col]

glas_gdf_aea_lite

	decyear	glas_z	geometry
0	2003.139571	1398.51	POINT (709465.483 277418.898)
1	2003.139571	1387.11	POINT (709431.326 276549.914)
2	2003.139571	1392.83	POINT (709424.459 276376.27)
3	2003.139571	1384.24	POINT (709417.614 276202.405)
4	2003.139571	1369.21	POINT (709410.847 276028.547)
...	...	...	...
65231	2009.775995	1556.16	POINT (-243698.93 -453031.309)
65232	2009.775995	1556.02	POINT (-243717.616 -452858.707)
65233	2009.775995	1556.19	POINT (-243736.378 -452685.769)
65234	2009.775995	1556.18	POINT (-243755.227 -452512.827)
65235	2009.775995	1556.32	POINT (-243774.072 -452339.774)

65236 rows × 3 columns

rgi_gdf_wa_aea_lite

	area	glac_name	geometry
glac_id
G239017E48473N	0.010000	WA	POLYGON ((-497307.03 740049.676, -497270.057 7...
G239094E48483N	0.020000	WA	POLYGON ((-491593.089 740721.949, -491579.174 ...
G238461E46196N	0.017000	WA	POLYGON ((-559673.366 491325.351, -559683.915 ...
G238476E46179N	0.015000	WA	POLYGON ((-558998.538 489268.298, -558995.149 ...
G236347E47827N	0.019000	WA	POLYGON ((-702008.885 687322.366, -702006.044 ...
...	...	...	...
G238195E46902N	0.011624	WA	POLYGON ((-573295.376 571181.887, -573295.329 ...
G238391E46856N	0.033371	WA	POLYGON ((-558919.795 564913.628, -558918.637 ...
G238307E46833N	0.017606	Whitman Glacier	POLYGON ((-565405.49 562981.446, -565405.429 5...
G238240E46829N	0.092248	The Turtle	POLYGON ((-570456.17 562862.434, -570453.613 5...
G238276E46894N	0.245708	None	POLYGON ((-567244.662 570697.792, -567238.43 5...

3298 rows × 3 columns

Now try a spatial join between these two

• Use the GLAS points as the “left” GeoDataFrame and the RGI polygons as the “right” GeoDataFrame

• Start by using default options (op='intersects', how='inner')

• Note the output geometry type and columns

#gpd.sjoin?

%%time
glas_gdf_aea_rgi = gpd.sjoin(glas_gdf_aea_lite, rgi_gdf_wa_aea_lite, how='inner')
glas_gdf_aea_rgi

CPU times: user 26.5 ms, sys: 0 ns, total: 26.5 ms
Wall time: 25.3 ms

	decyear	glas_z	geometry	glac_id	area	glac_name
1032	2003.162887	1798.45	POINT (-536016.695 765363.954)	G238471E48673N	0.415698	None
5364	2003.753883	1512.90	POINT (-530581.785 690172.726)	G238622E48004N	0.205413	None
5365	2003.753883	1438.98	POINT (-530593.089 690345.943)	G238622E48004N	0.205413	None
5385	2003.753883	1693.92	POINT (-535424.201 762962.461)	G238478E48651N	0.018952	WA
5393	2003.753883	1826.79	POINT (-535556.175 765036.88)	G238471E48673N	0.415698	None
...	...	...	...	...	...	...
62753	2009.193240	1808.38	POINT (-609610.287 497094.966)	G237806E46202N	1.739850	Crater Glacier
62754	2009.193240	1768.04	POINT (-609617.471 497268.525)	G237806E46202N	1.739850	Crater Glacier
62755	2009.193240	1702.59	POINT (-609623.984 497441.798)	G237806E46202N	1.739850	Crater Glacier
63346	2009.215123	2585.78	POINT (-572545.896 570214.657)	G238212E46896N	2.657990	Russell Glacier
63347	2009.215123	2291.64	POINT (-572614.622 571257.146)	G238212E46896N	2.657990	Russell Glacier

554 rows × 6 columns

Check number of records

print("Number of RGI polygons before:", rgi_gdf_wa_aea_lite.shape[0])
print("Number of GLAS points before:", glas_gdf_aea.shape[0])
print("Number of GLAS points that intersect RGI polygons:", glas_gdf_aea_rgi.shape[0])

Number of RGI polygons before: 3298
Number of GLAS points before: 65236
Number of GLAS points that intersect RGI polygons: 554

Check number of GLAS points per RGI polygon

glas_gdf_aea_rgi

	decyear	glas_z	geometry	glac_id	area	glac_name
1032	2003.162887	1798.45	POINT (-536016.695 765363.954)	G238471E48673N	0.415698	None
5364	2003.753883	1512.90	POINT (-530581.785 690172.726)	G238622E48004N	0.205413	None
5365	2003.753883	1438.98	POINT (-530593.089 690345.943)	G238622E48004N	0.205413	None
5385	2003.753883	1693.92	POINT (-535424.201 762962.461)	G238478E48651N	0.018952	WA
5393	2003.753883	1826.79	POINT (-535556.175 765036.88)	G238471E48673N	0.415698	None
...	...	...	...	...	...	...
62753	2009.193240	1808.38	POINT (-609610.287 497094.966)	G237806E46202N	1.739850	Crater Glacier
62754	2009.193240	1768.04	POINT (-609617.471 497268.525)	G237806E46202N	1.739850	Crater Glacier
62755	2009.193240	1702.59	POINT (-609623.984 497441.798)	G237806E46202N	1.739850	Crater Glacier
63346	2009.215123	2585.78	POINT (-572545.896 570214.657)	G238212E46896N	2.657990	Russell Glacier
63347	2009.215123	2291.64	POINT (-572614.622 571257.146)	G238212E46896N	2.657990	Russell Glacier

554 rows × 6 columns

glas_gdf_aea_rgi['glac_id'].value_counts()

glac_id
G237806E46202N    131
G238391E48814N     33
G238415E48825N     33
G236351E47790N     28
G236663E47729N     23
                 ...
G238210E46865N      1
G238212E46867N      1
G238204E46908N      1
G239246E48490N      1
G236683E47825N      1
Name: count, Length: 81, dtype: int64

Which glacier has the greatest number of points?

Some notes on indexing and selecting from Pandas DataFrame: http://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html

https://www.shanelynn.ie/select-pandas-dataframe-rows-and-columns-using-iloc-loc-and-ix/

Here we’ll use the iloc function to pull out the record for the RGIId key with the highest point count.

label = glas_gdf_aea_rgi['glac_id'].value_counts().index[0]
print(label)

G237806E46202N

rgi_maxcount = rgi_gdf_wa_aea_lite[rgi_gdf_wa_aea_lite.index == label]
rgi_maxcount

	area	glac_name	geometry
glac_id
G237806E46202N	1.73985	Crater Glacier	POLYGON ((-609129.82 497214.762, -609130.198 4...

rgi_maxcount.iloc[0].geometry

Interactive plots

Commented out to reduce notebook filesize

#rgi_maxcount.explore(tiles=xyz.Esri.WorldImagery)

#glas_gdf_aea_rgi.explore()

# m = rgi_gdf_wa_aea_lite.explore(tiles=xyz.Esri.WorldTopoMap)
# glas_gdf_aea_rgi.explore(m=m, column='glas_z', cmap='inferno')

#m.save('wa_glas_rgi.html')

def plotcol(gdf, col='glas_z'):
    clim = gdf[col].quantile((0.02, 0.98)).values
    m = gdf[::1].explore(tiles=xyz.Esri.WorldImagery, column=col, cmap='inferno', vmin=clim[0], vmax=clim[1])
    return m

#plotcol(glas_gdf_aea_rgi, col='glas_z')
